TS-1232XU-RP network storage server

 

Supports 10GbE transfer speed, SMB entry-level rack-mounted NAS, equipped with two SFP + ports, a PCIe 2.0 × 2 slot and redundant power supply

TS-1232XU-RP is specially designed to provide high performance, flexible expansion capacity and serve various application scenarios. It is affordable and cost-effective, suitable for small and medium-sized enterprises. Two 10GbE SFP + ports can transmit time-sensitive important data at high speed, and PCI Express (PCIe) 2.0 × 2 slot (× 4 length) can install QNAP QM2 expansion card to expand storage space with M.2 SATA / PCIe NVMe SSD , Set cache or enable Qtier 2.0 automatic tiered storage technology; some QM2 expansion cards even have 10GBASE-T network ports. TS-1232XU-RP can be deployed in data storage, file backup, disaster recovery, virtual containerized applications, video surveillance and other solutions to meet a variety of different needs. In addition, the TS-1232XU-RP also has a redundant power supply to ensure 24/7 execution of important services.

  Two built-in 10GbE SFP + ports provide high-speed transmission performance, suitable for mission-critical applications such as database and virtual machine storage.

  One PCIe 2.0 × 2 slot (× 4 length) can be used to add 10GbE network ports and / or M.2 SSD slots. If SSD is installed, Qtier automatic tiered storage function can be enabled to make the storage space use reach the state.

  Snapshots can provide an extra layer of protection for your disaster recovery plan, allowing you to create and restore snapshots locally and / or remotely.

  You can create a multi-faceted backup strategy with the Hybrid Backup Sync application to perform file backup, restore and synchronization locally and / or remotely.

  QNAP's virtual JBOD technology can be used to expand the capacity of remote NAS, thus ensuring full use of all available space.

  The hot-swappable backup power supply can ensure high reliability and allow the system to continue to operate 24/7 without downtime.

  Available models

  TS-1232XU-RP-4G

Annapurna Labs Alpine AL-324 quad-core 1.7 GHz processor, 4 GB memory, redundant power supply, 2U

  The right choice for daily work

The TS-1232XU-RP is equipped with the AL-324 quad-core 1.7 GHz platform single-chip (Platform-on-Chip PoC) processor of the Alpine V2 AL3 product series from Annapurna Labs. The built-in 4 GB memory can be expanded up to 16 GB, and will grow in response to future demands. TS-1232XU-RP has 10GbE network port and PCIe expansion slot, and can provide up to 2060/689 MB / s (unencrypted) and 1196/390 MB / s (hardware accelerated AES-256 disk area encryption) performance , Significantly improve the efficiency of daily operations.

  Windows File Transfer (2 x 10 GbE)

  Upload689 MB/s Download2060 MB/s

  Windows File Transfer with Encryption (2 x 10 GbE)

  Upload390 MB/s Download1196 MB/s

  Tested in QNAP laboratory, the data will vary according to the actual environment.

  测试环境：

  NAS: TS-1232XU-RP with QTS 4.3.4

  Disk group: RAID 5; 12 x Intel SSDSC2BB240G4

  Client PC: Windows 10, Intel Core i7-4700 3.4 GHz, 16GB RAM, Mellanox ConnectX®-3 Pro 10GbE NICs, MTU 9000

  Built-in 10 GbE SFP + network port to speed up workflow without waiting

The TS-1232XU-RP with 2 built-in 10GbE SFP + network ports can take advantage of the high-speed 10GbE network infrastructure right out of the box, without the need for additional network cards. The 10GbE SFP + network port can be used in tasks or application scenarios that require large amounts of bandwidth, including databases, virtual machine storage, and huge amounts of data backup.

  透过 PCI Express 插槽轻松扩充，弹性运用

  TS-1232XU-RP 提供一个 PCI Express (PCIe) 2.0 ×2 插槽 (×4 长度)，可用于扩充 NAS 功能，例如安装额外的 10GBASE-T 网络端口及 M.2 SSD (SATA 或 PCIe NVMe*)。QNAP 提供一系列各式扩充卡，包括 QM2 扩充卡、单/双埠有线网卡及 USB 3.1 Gen 2 (10Gbps) 扩充卡，可让您充分运用 TS-1232XU-RP 的 PCIe 扩充能力，发挥 TS-1232XU-RP 的更多价值。

  *所有硬盘 (SSD 及 HDD) 须另外选购。若要在 M.2 PCIe NVMe SSD 上建立储存池 / 磁盘区，将需要使用 QM2。未透过 QM2 安装的 M.2 PCIe NVMe SSD 仅限用于快取。

  运用快照和 Hybrid Backup Sync，确保数据安全无虞

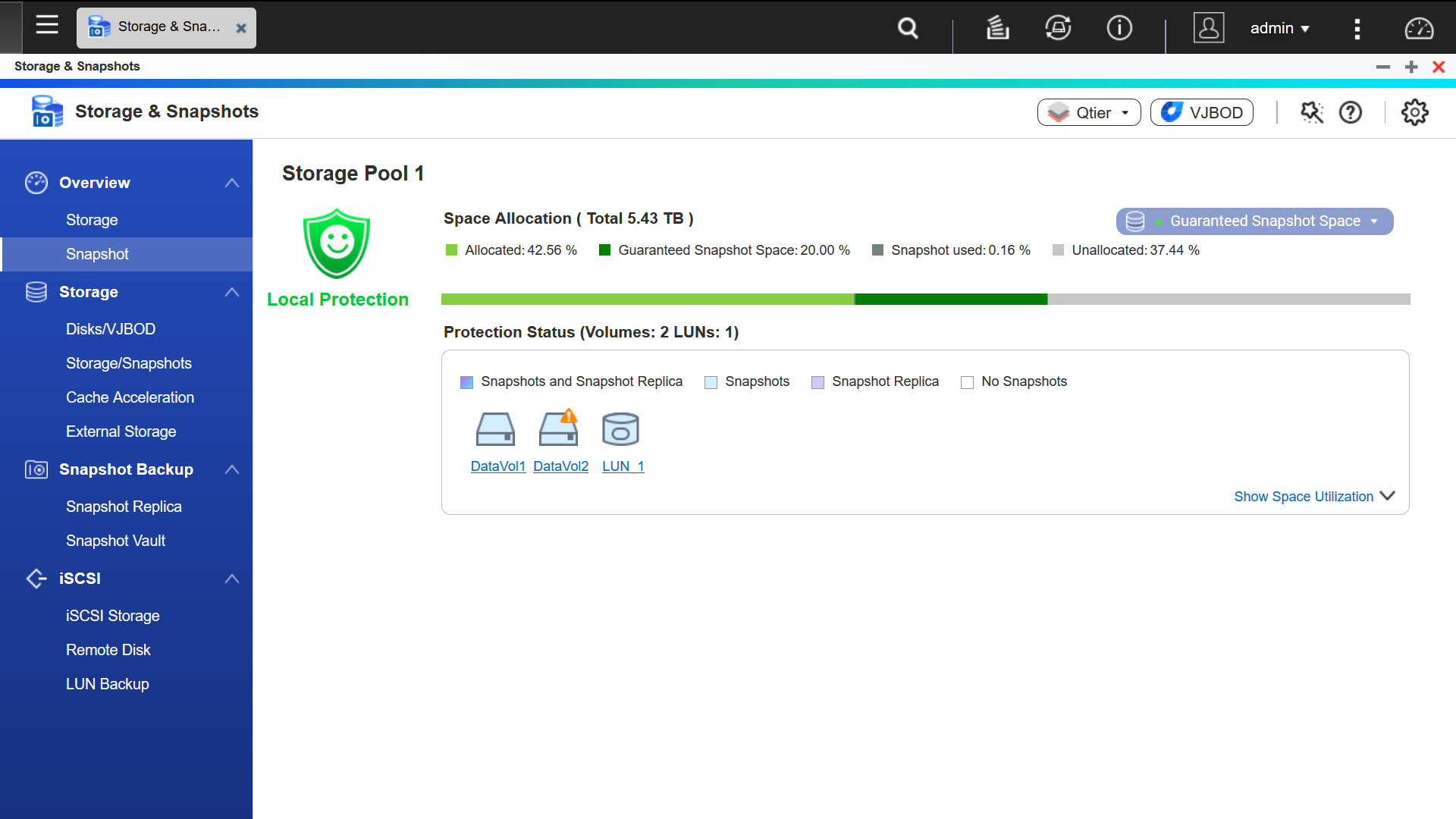

  完善的灾难复原计划，有赖于层层的数据保护与备份。TS-1232XU-RP 可以使用快照记录区块层级的档案状态及变更，当意外事件发生时 (如错删档案或加密勒索软件攻击)，您可快速回复先前的版本。若要进一步提高数据安全性，还可使用 Hybrid Backup Sync 应用程序，在本机外接装置、远程 NAS 及公有云端服务之间进行文件备份、还原及同步。

  跨平台档案分享和 Qsync，让档案交换更方便快速

  TS-1232XU-RP 支持 SMB/CIFS、NFS 及 AFP 通讯协议，让您跨 Windows、Mac、Linux/UNIX 网络分享档案。如此一来，资料可以集中储存，并受到 TS-1232XU-RP 各种档案保全及安全性功能的保护。Windows AD 和 LDAP 服务可让系统管理员使用既有的 Windows AD 服务器、LDAP 服务器或 NAS 内建的 LDAP 服务，设定用户权力。若要在手机和平板等多种装置间同步数据，只要在 NAS 上安装 Qsync Central，并在其他装置上安装 Qsync 客户端，即可享有快速、隐密、安全且实时的档案同步服务。

  备份 Windows 及 Mac PC，确保工作数据妥善保存

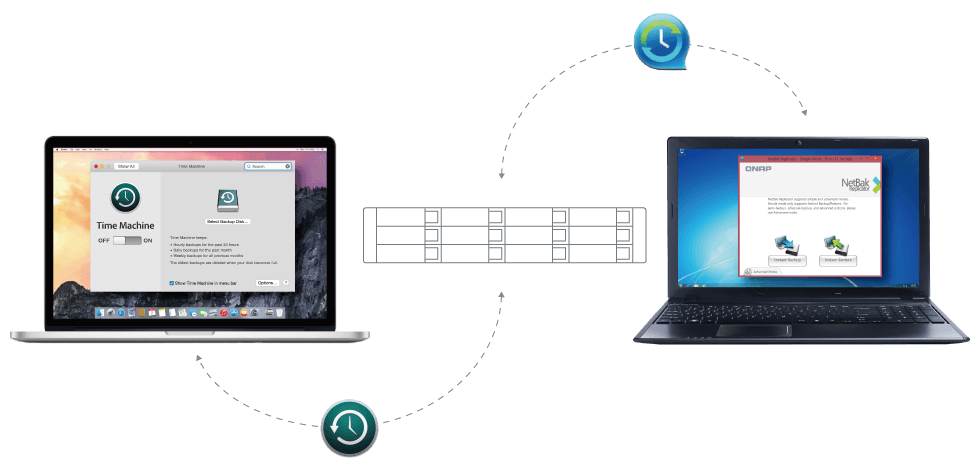

  TS-1232XU-RP 可用于备份 Windows® PC 及 Mac 上的档案，只要使用 QNAP 提供的 NetBak Replicator 备份公用程序，只须轻松几步骤即可完成设定。macOS 使用者则可设定 Time Machine，将档案储存到 TS-1232XU-RP。若进一步整合运用快照及 Hybrid Backup Sync，TS-1232XU-RP 即可成为灾难复原计划的重要核心。

  QTS 和 App Center 开创多种可能

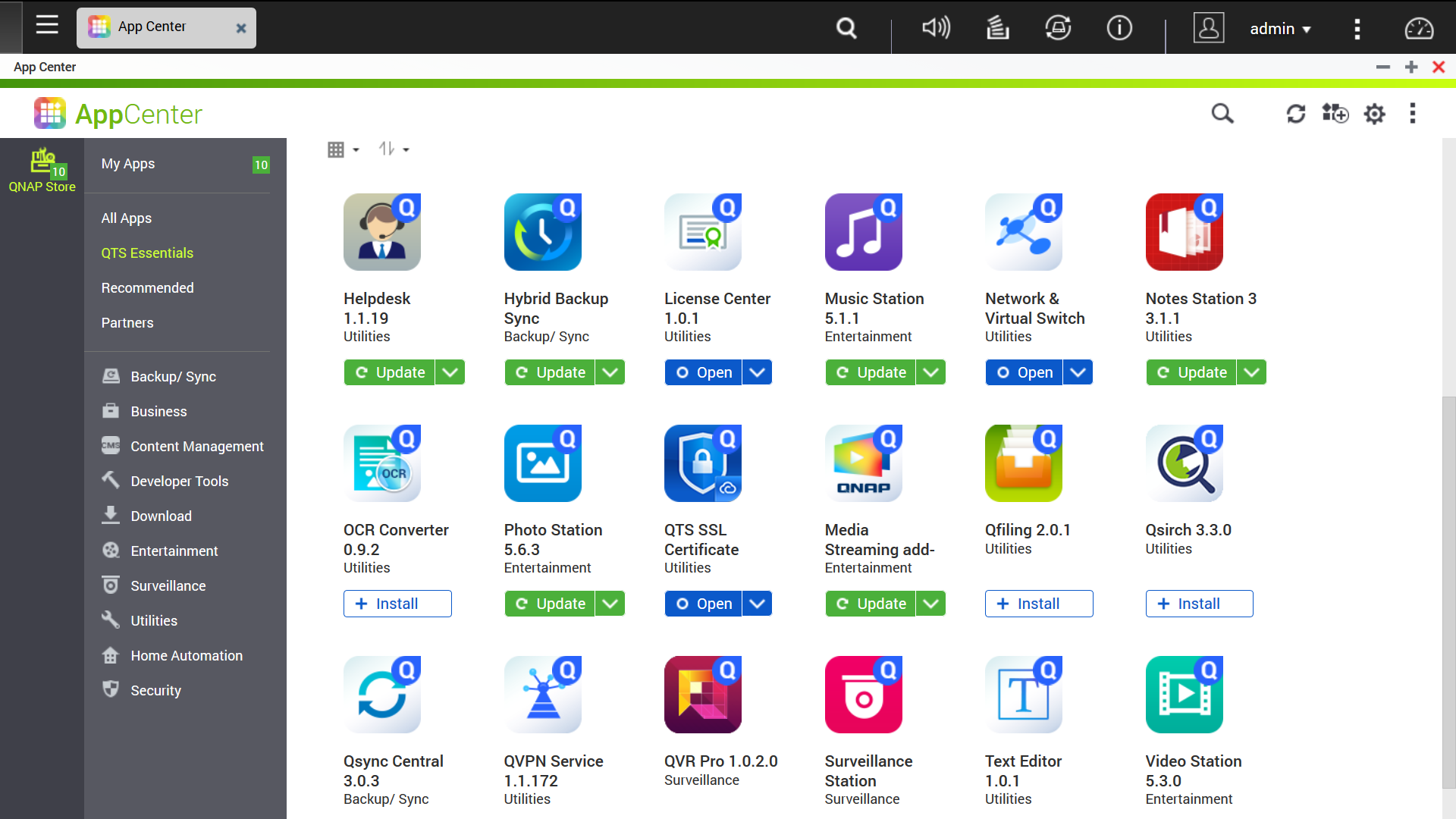

  QNAP NAS 的操作系统 QTS 持续进化，提供许多创新应用及功能强化，例如最新的 Qtier 2.0、RAID 50/60 支持、Qboost、OCR Converter 等。QTS 的 App Center 则提供了更多的应用程序，例如 Domotz 及 QVPN Service 等，您可以轻松运用 QNAP 和其他合作伙伴的提供的 App，持续扩展 NAS 功能及各种应用情境的潜能。

  整合式视讯监控解决方案，打造理想安控系统

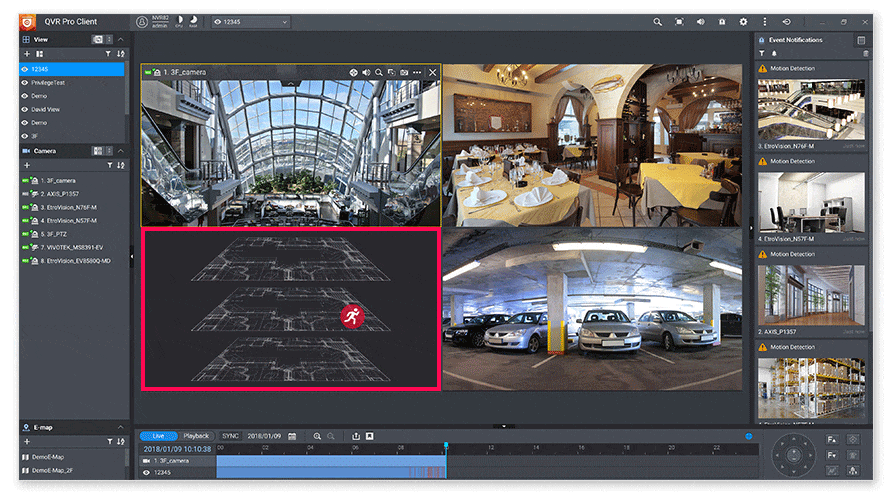

  TS-1232XU-RP 可用作智能型视讯监控管理系统，用以实时监控、录像及回播，守护您的工作环境。您甚至可使用免费的 QUSBCam2 App，将 USB 网络摄影机当作实惠的 IP 摄影机使用。TS-1232XU-RP 也支持QNAP 全新的 NVR 系统 QVR Pro，让您在 NAS 上配置专用的独立储存空间来存放监控数据，并充分运用 QTS 的扩充能力与储存管理优势。

  *实际支持的最高摄影机频道数取决于 NAS 型号、网络配置及摄影机设定。

  利用加密及其他安全功能，保护 NAS 数据安全

  TS-1232XU-RP 搭载的 AL-324 PoC 处理器具备硬件加速加密功能，能以 AES-256 加密等级，对磁盘区、共享文件夹和/或 LUN 加密，确保数据机密性而不牺牲效能。其他安全性功能包括两步骤验证、IP 地址过滤、病毒和恶意软件扫描程序等。您也可以设定访问权限，防堵使用者和 App 未经授权存取系统数据。App Center 中提供的 QVPN Service 可用于部署 VPN 联机，确保装置及 NAS 间的通讯安全。

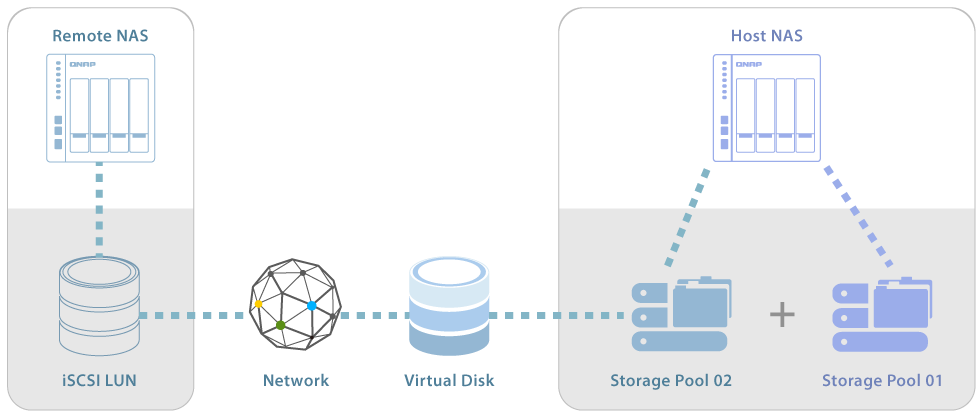

  以虚拟 JBOD 和储存扩充设备分享并扩充储存空间

TS-1232XU-RP supports connection of UX-800U-RP (8 hard drive bays) or UX-1200U-RP (12 hard drive bays) storage expansion devices to expand available storage space. Through QNAP's virtual JBOD (VJBOD) technology, the free storage space in TS-1232XU-RP can also be used to expand the storage space of other QNAP NAS.

Equipped with redundant power supply to ensure uninterrupted service 24/7

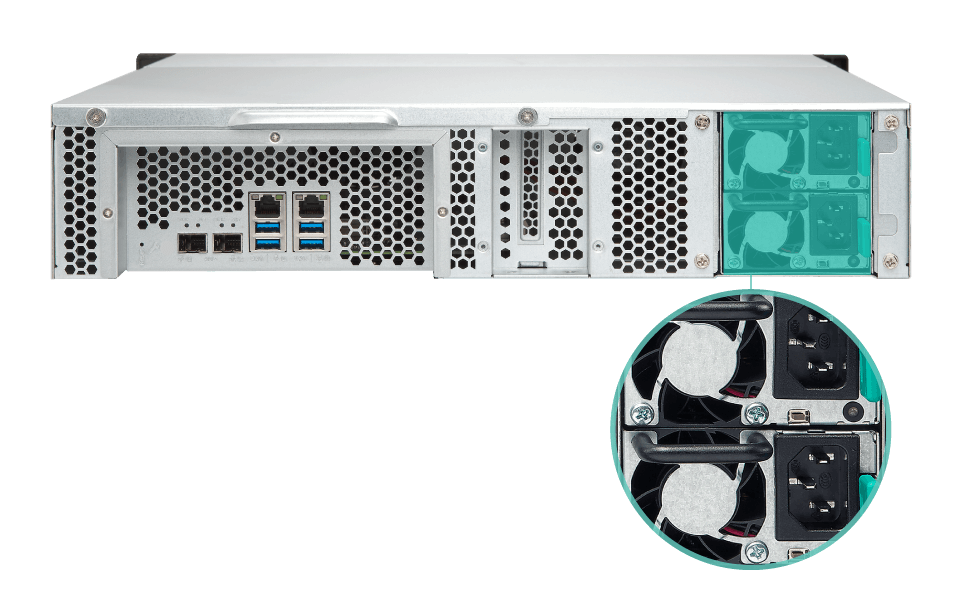

TS-1232XU-RP is equipped with a redundant power supply to ensure stable and uninterrupted service, thereby improving reliability. Combined with dual 1000BASE-T and dual 10GbE SFP + network ports, enterprises can easily maintain uninterrupted operations throughout the year, ensuring the cost-effectiveness and reliability of storage solutions.

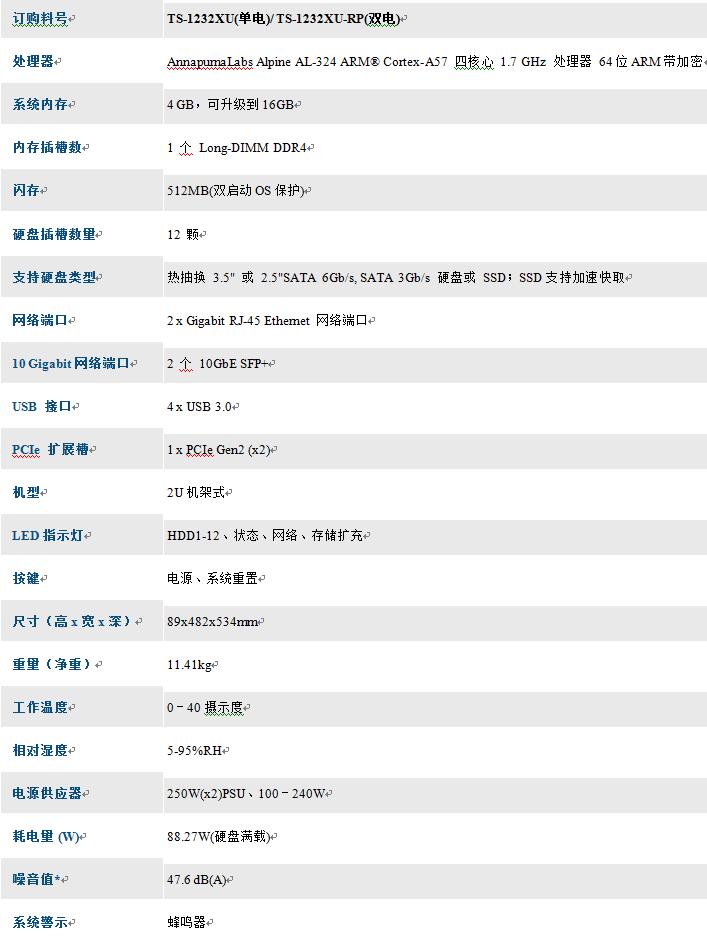

Hardware Configuration
