RS4017xs + network storage server

Highly scalable NAS, designed to meet the requirements of virtualization, data-intensive applications and service continuity in large enterprises

Features

Powerful storage solution

RS4017xs + is an extremely high-performance and reliable storage solution that provides more than 240,079 random read IOPS and 6,221 MB per second continuous read throughput. DDR4 ECC UDIMM and 10GbE connectivity ensure data accuracy and performance in mission-critical environments.

Efficient scalability and reliability

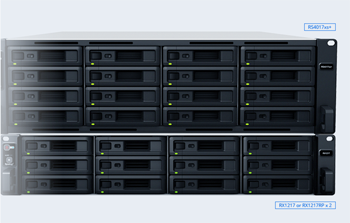

After connecting RS4017xs + to two Synology Expansion Units RX1217 or RX1217RP1, this can further expand its storage capacity without interrupting service, bringing the total number of hard drives to 40.

Certified storage virtualization solutions

Synology iSCSI storage fully supports most virtual solutions, and a simple management interface can improve work efficiency. The integration of VMware vSphere 6 and VAAI helps offload storage operations and optimize computing efficiency. Windows Offloaded Data Transfer (ODX) can greatly improve the data transfer and migration rate. Synology NAS supports OpenStack Cinder and can be used as a block storage component.

Btrfs: next-generation storage efficiency

 Btrfs file system adopts more advanced storage technology to meet the management needs of large modern enterprisesbegging：

 ·The shared folder / user quota system is flexible and provides full quota control for all user accounts and shared folders

 ·Snapshot Replication 可1,024 shared folder backups and 65,000 system snapshots provide adjustable, storage capacity-saving data protection capabilities.

 ·With file or folder-level data recovery capabilities, data can be recovered quickly and flexibly

 ·Automatic file self-repair capability can detect and restore damaged files without user intervention

Synology DSM operating system

 Synology High Availability

 Ensure that when one of the servers in the cluster fails, the services can be transferred completely and smoothly between the cluster servers.

 Hyper Backup

 Block-level incremental backup and deduplication technology between versions allow you to store multiple backup versions.

 Cloud Station series

 Automatically synchronize cross-platform data and import file version control.

 CMS

 Simultaneous management of multiple Synology NAS through a centralized interface improves management efficiency and flexibility.

 MailPlus

 Establish a secure and reliable private mail server and provide a intuitive user interface with a design style.

 Collaboration Suite

 Synology Office、Calendar、Chat And other tools can ensure safe and efficient private communication services and provide user-friendly content organization.

hardware

processor：Intel Xeon D-1541 64-bit octa-core 2.1 (benchmark) / 2.7 (core frequency) GHz with hardware encryption engine (AES-NI)

System memory:8 GB DDR4 ECC UDIMM，Scalable to 64 GB (16 GB x 4)

Storage device

 Number of disk slots: 16

 Maximum number of disk slots for installing expansion devices：40

 Compatible disk types * (see all supported disks)：3.5" SATA HDD，2.5" SATA HDD，2.5" SATA SSD

 Maximum internal net total storage capacity: 224 TB (14 TB drive x 16) (capacity will vary with RAID type)

 Maximum Net Total Storage Capacity with Expansion Unit: 560 TB (224 TB + 14 TB drive x 24) (capacity will vary with RAID types)

 Maximum single storage space capacity:200 TB (requires 32GB RAM, only supports RAID 5 or RAID 6 groups); 108 TB

 Disk hot swap support

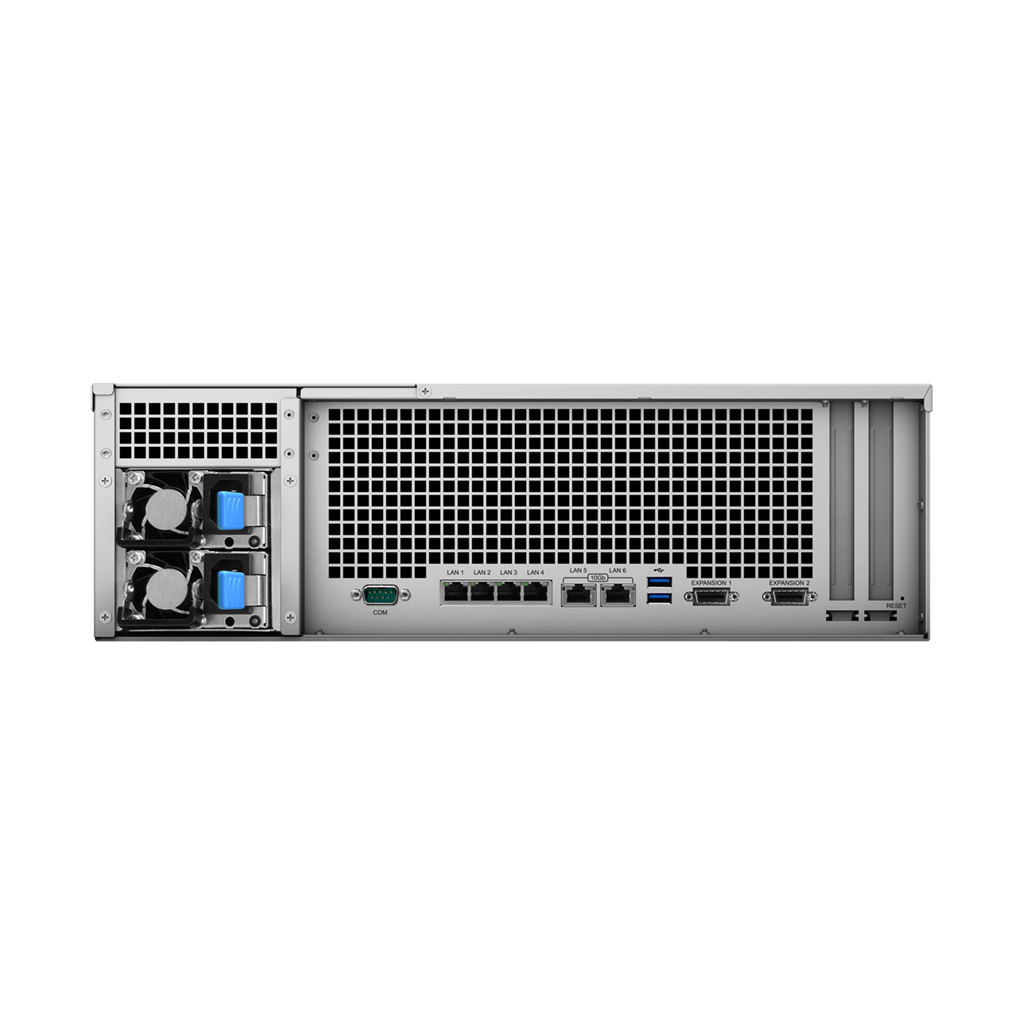

External port

 RJ-45 1GbE network port: 4 (support Link Aggregation / failover)

 RJ-45 10GbE network port: 2 (support Link Aggregation / failover)

 USB 3.0 port: 2

 Expansion port: 2

PCIe

 PCIe expansion: 2 x Gen3 x8 slots (x8 link)

 Additional card support: M2D18-Dual M.2 SATA SSD adapter card for SSD cache; PCIe network interface card(

 Remark: RS4017xs + is equipped with M2D18 and only supports M.2 SATA SSD. M.2 NVMe / AHCI PCIe SSD is not supported.

File system

 Internal disk：Btrfs/EXT4

 External disk:Btrfs/EXT4/EXT3/FAT/NTFS/HFS+/exFAT*

 Note: exFAT Access needs to be purchased separately from the kit center.

Exterior

 Size (Height X Width X Depth): 132.3 mm x 482 mm x 656.5 mm

 Weight: 17.4 kg

 Rack mounting support: Four-post 19-inch rack (Synology Rail Kit-RKS1317)

 Note: The rail kit needs to be purchased separately.

other projects

 System fan:80 mm x 80 mm x 3 pcs

 

Fan mode: fastest mode / low temperature mode / silent mode

Support replaceable system fan

Support automatic power recovery

Noise value *: 44.7 dB (A)

Support timing on / off

Support Wake on LAN

Power supply / transformer: 2 x 800W

AC input voltage: 100V to 240V AC

Current frequency; 50/60 Hz, single frequency

Power consumption *: 136.4 W (Access) /69.2 W (HDD Hibernation)

British thermal unit: 465.7 BTU / hr (Access) /236.3 BTU / hr (HDD Hibernation)

Support dual power supply (xs + and RP models)

Ambient temperature

Operating temperature: 5 ° C to 35 ° C (40 ° F to 95 ° F)

Storage temperature: -20 ° C to 60 ° C (-5 ° F to 140 ° F)

Relative humidity: 5% to 95% RH

Certification body:EAC/VCCI/CCC/RCM/KC/FCC/CE/BSMI

Original warranty
