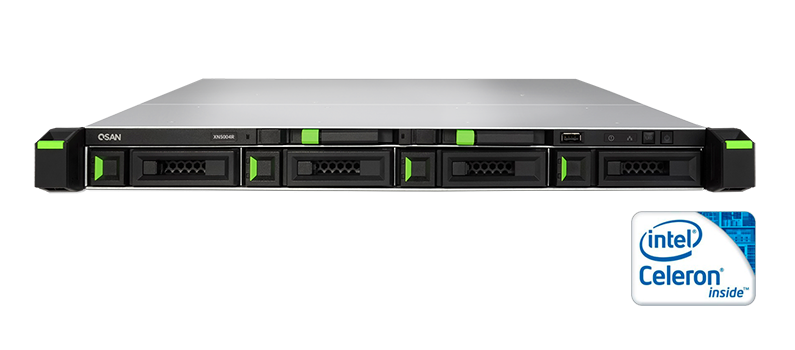

XN5004R

product description

Software function:

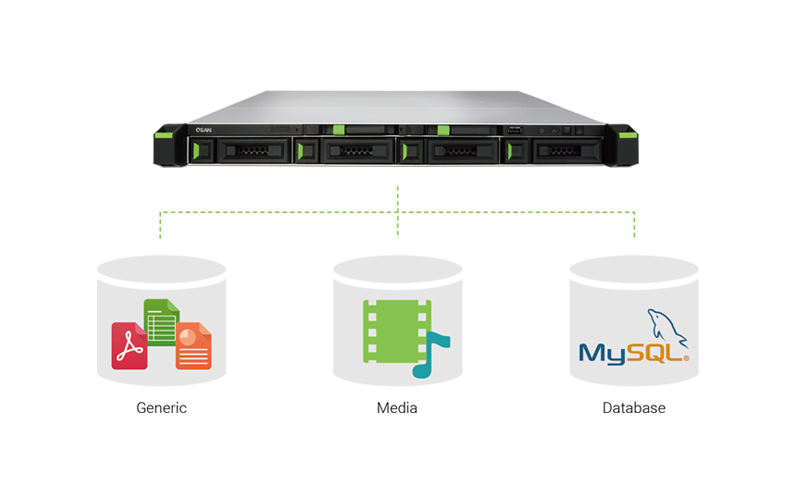

· Unified storage: with NAS (network storage) + IPSAN (storage area network) + DAS (direct connection storage)

·file server

· FTP server

· File system support: ZFS / EXT2 / EXT3 / EXT4 / FAT / NTFS / HFS +

· Client support: WINDOWS, MAC OS X, LINUX

· Disk management: RAID 0/1/5/6/10 / JBOD

· With two 2.5-inch slots can be used for cache acceleration, but also for data tiering.

· With 4 3.5-inch / 2.5-inch universal slots for data storage.

Support Thunderbokt 3 technology, can connect the server directly to the storage device through the expanded lightning card, the speed is super fast.

· Virtualization support: VMware Ready, Citrix Ready and Microsoft Hyper-V

Support data layering

Support deduplication

· Clent data backup software XReplicator, supports up to 100 users

· Support snapshot

· Support WORM (Write Once Data Protection Technology)

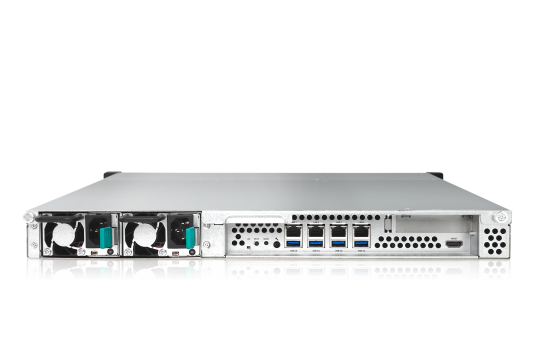

Hardware Configuration:

CPU: Intel Celeron 2.9 GHz dual-core processor

· Memory: 8GB DDR4 U-DIMM

· Support hard disk type and quantity: 4 x 3.5 ”/2.5” SATA HDD / SSD, 2 x SATA SSD

· Network interface: 4 x 1 GbE LAN (RJ45)

· USB interface: USB 3.0 x4 (rear), USB 2.0 x1 (front)

· Flash memory: 8GB USB DOM

· Expansion slot support: PCIe Gen3 x8 for 10GbE / ThunderboltTM 3 / SAS expansion card

· Power supply: dual power supply (redundant power supply)
